How to update HP StoreVirtual 3200 without internet connection

Internet update wasn’t working for me, so I decided to update StoreVirtual 3200 manually and there are two options on the storage to do so – nfs and ftp.



This tutorial will cover NFS update method and Windows Server 2012 R2 STD from my testing LAB.

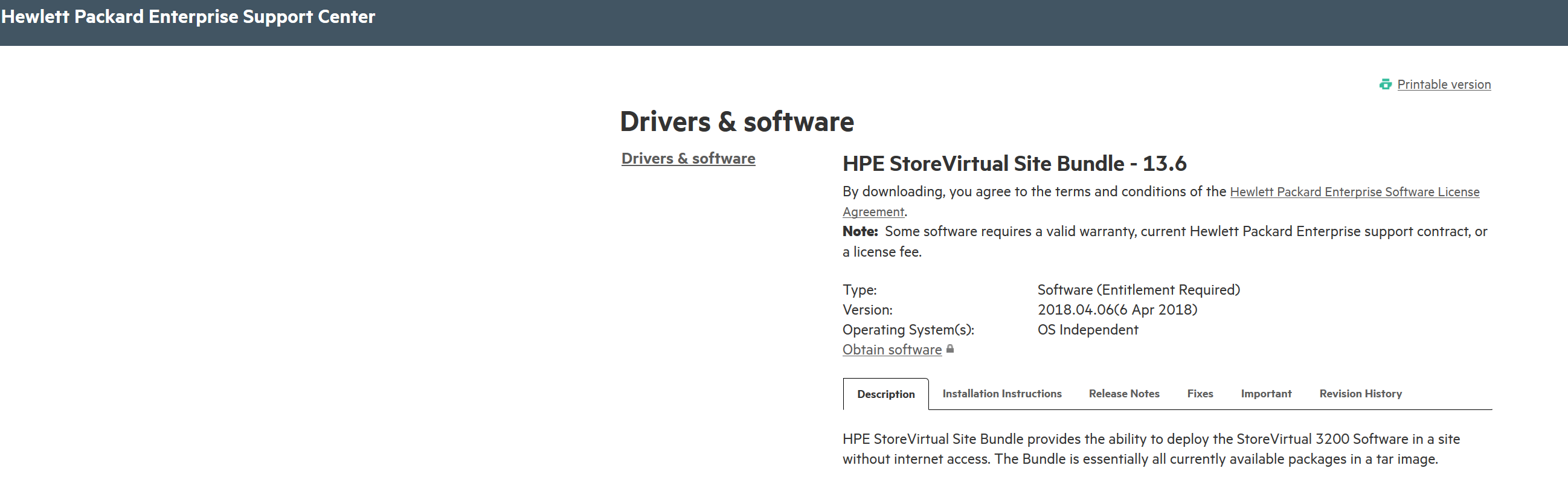

First – download HPE StoreVirtual Site Bundle

At the time of writing this, it was on this link:



https://support.hpe.com/hpsc/swd/public/detail?sp4ts.oid=1009115875&swItemId=MTX_ba67636abf1949c2b3151cc746&swEnvOid=4184



While this is downloading, lets configure Windows Server 2012 R2



We need NFS service installed.

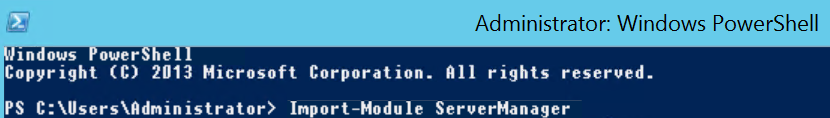

Open powershell



Enter following commands





Import-Module ServerManager

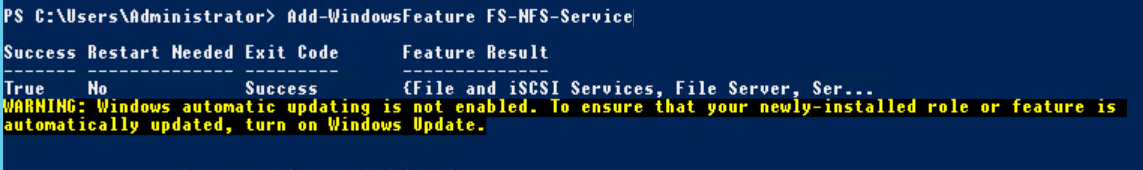

Add-WindowsFeature FS-NFS-Service

Import-Module NFS

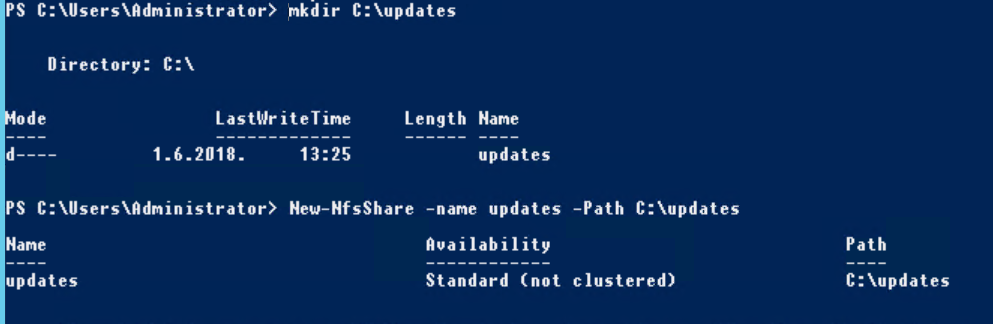

mkdir C:\updates

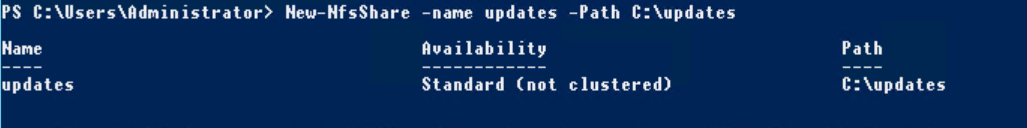

New-NfsShare -name updates -Path C:\updates

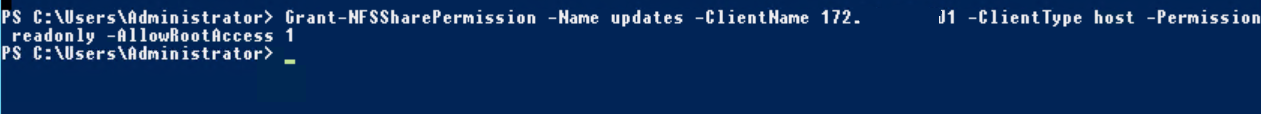

Grant-NFSSharePermission -Name updates -ClientName 172.16.253.201 -ClientType host -Permission readonly -AllowRootAccess 1



*change IP address to your management IP address.



We are done with the commands



Now, when the download is done, extract downloaded .tar (7Zip is great for Windows) to the c:\updates



From the storage.



First make sure that Windows Server 2012 R2 and StoreVirtual 3200 can communicate and are on the same subnet. You can check communication by pinging Windows Server 2012 R2 from StoreVirtual 3200 (enable ping in Windows firewall).

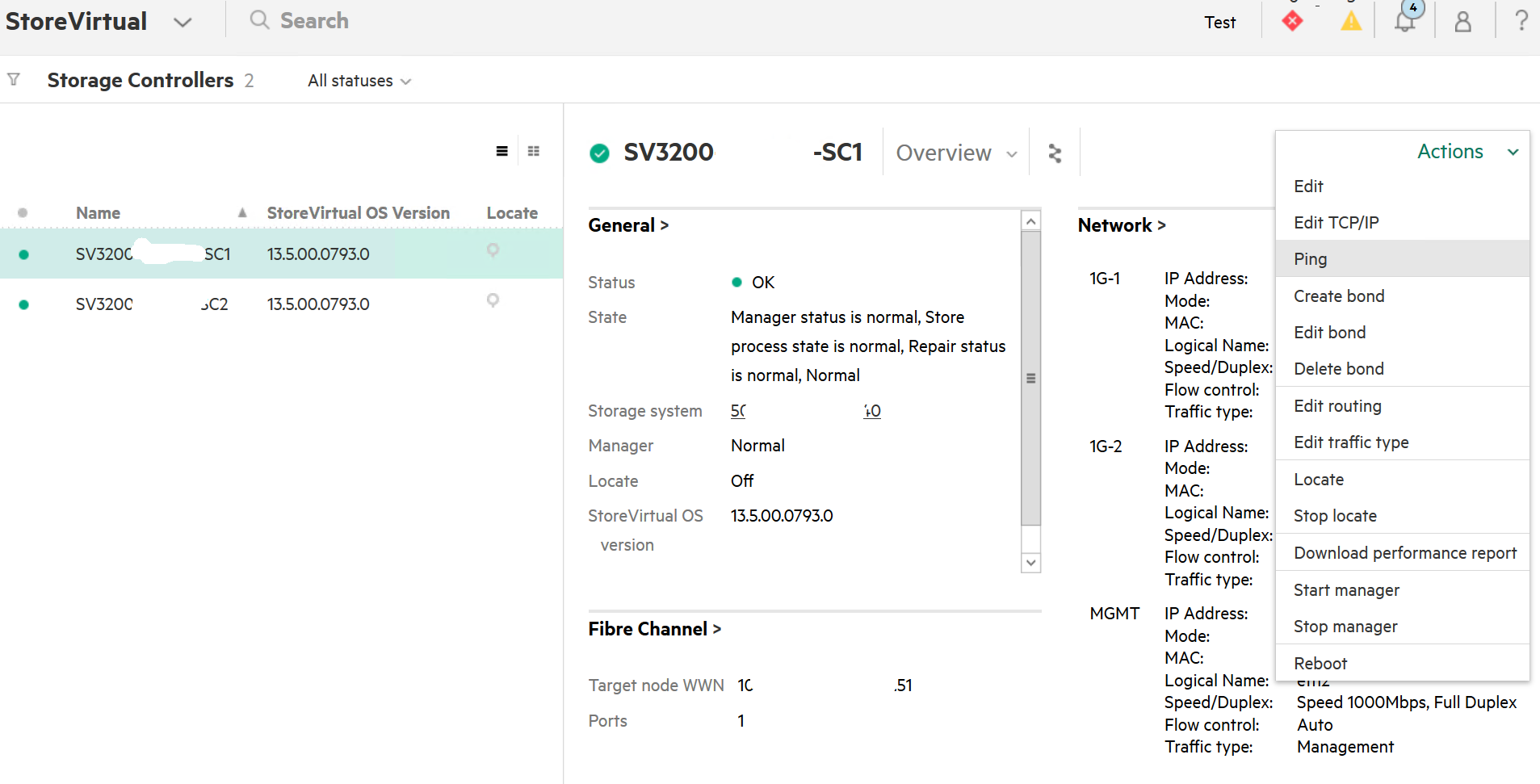

Go to StoreVirtual | Storage Controllers | select controller with active management port (in my case it is SC1) go to Actions and select Ping

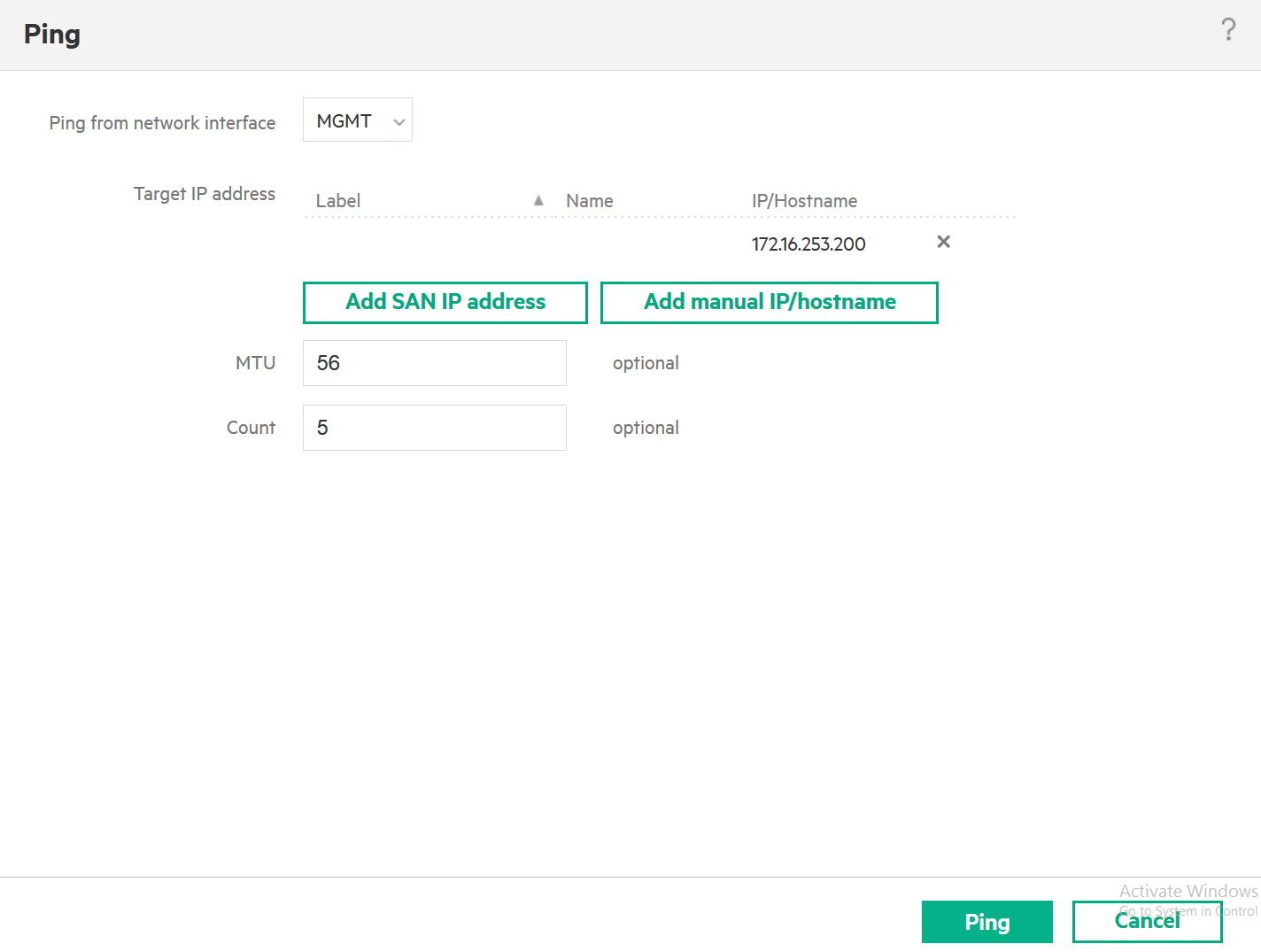

Enter IP on which is Windows Server 2012 R2 located and select MGMT as network interface | Ping

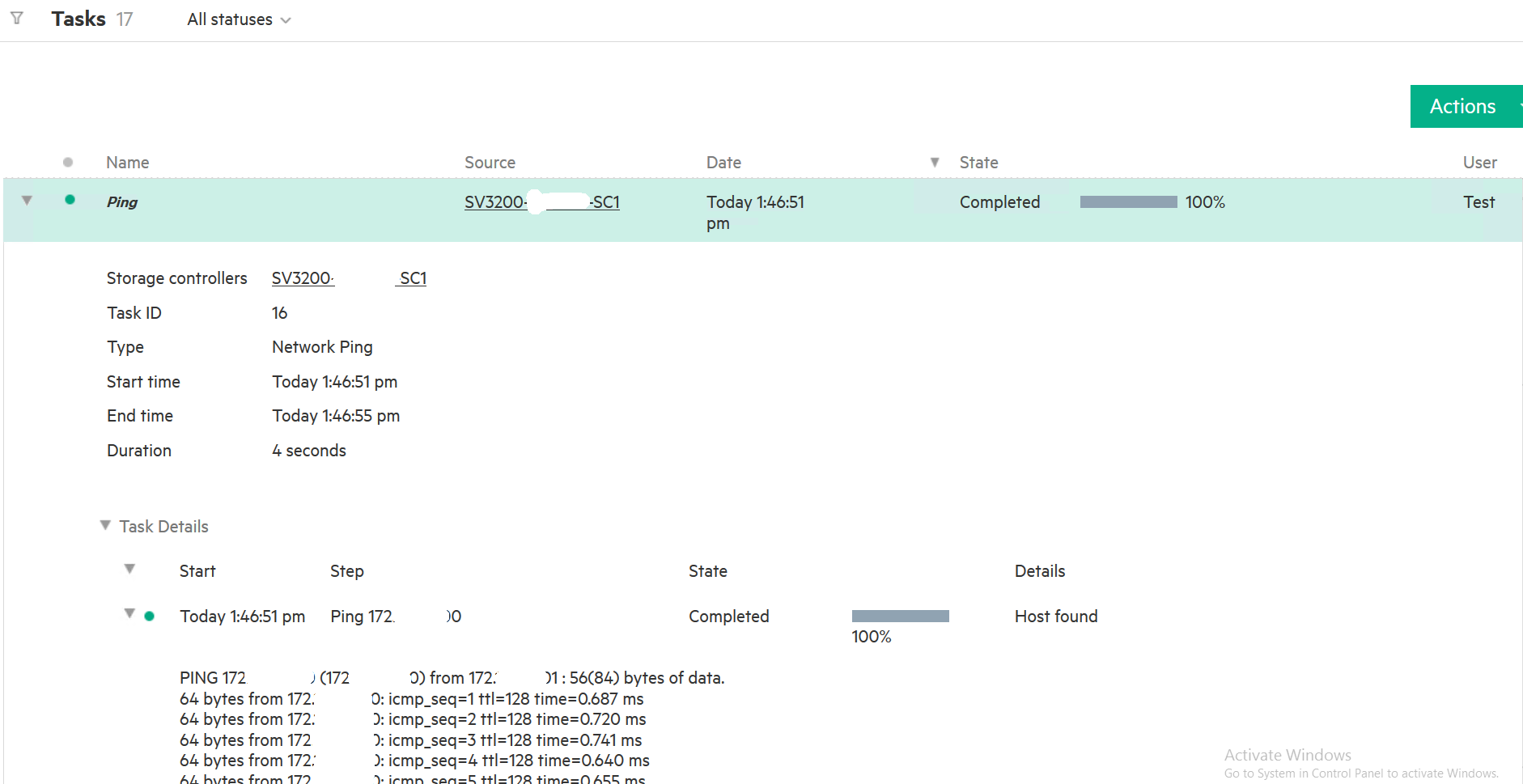

Ping is a success



Next step is configuration of the update source

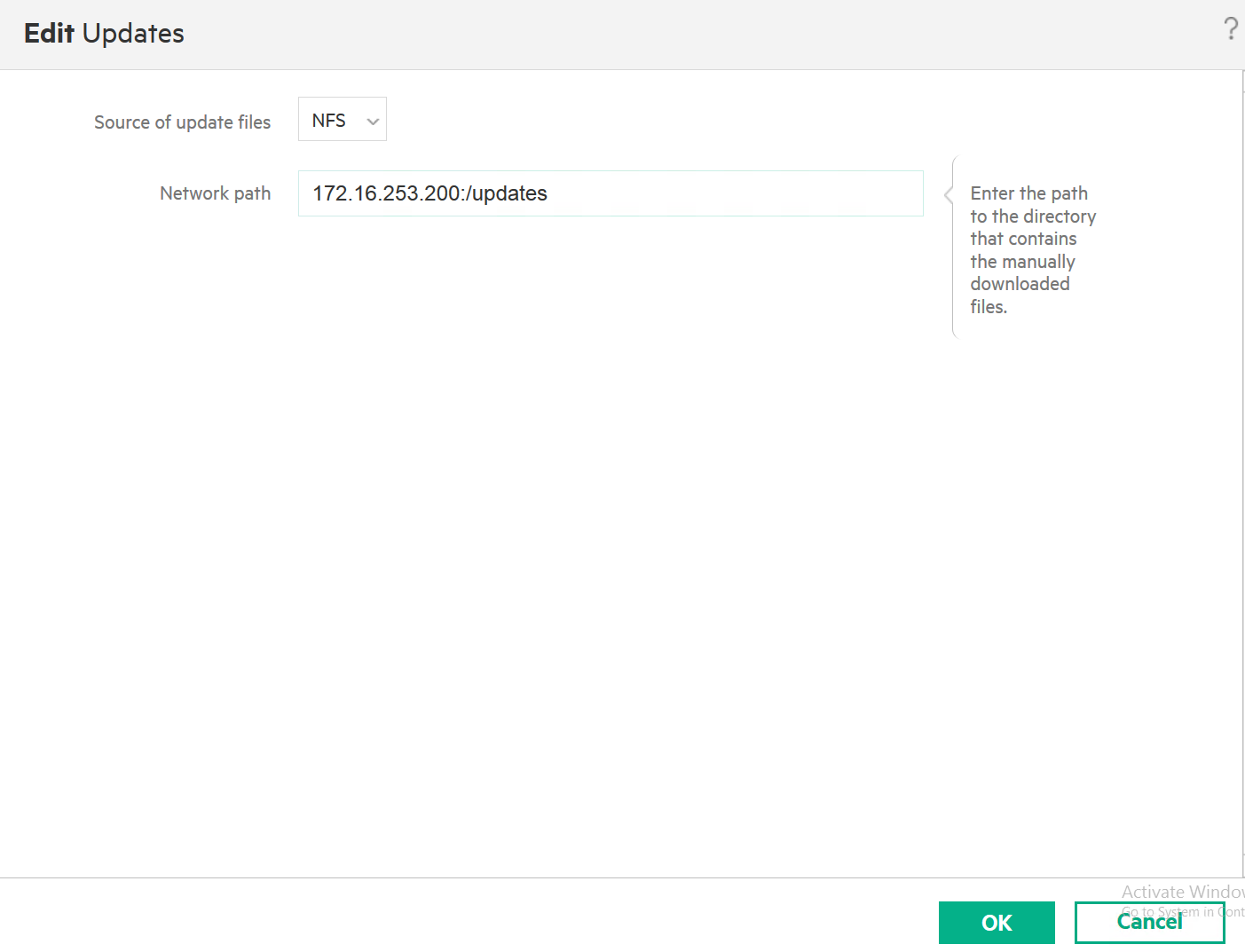

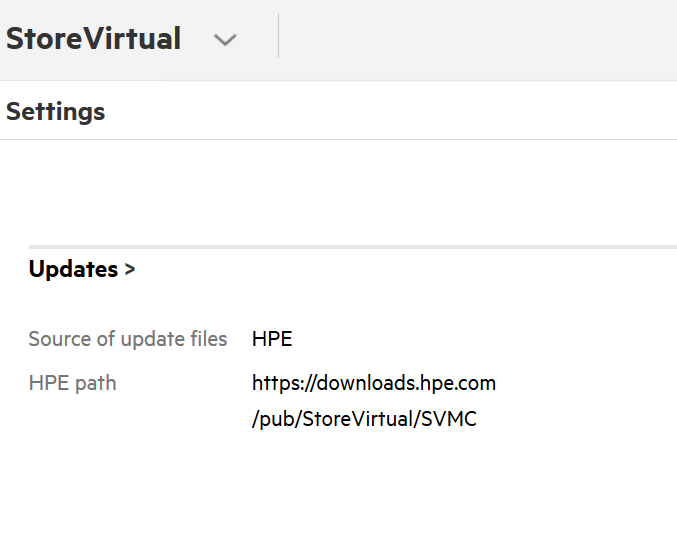

StoreVirtual | Settings | Updates | Edit (it will show after you hover with mouse over Updates > text

Select NFS instead of HPE  and enter path to the nfs server in following format



172.16.253.200:/updates



*change 172.16.253.200 for the IP address of your Windows machine on which you prepared updates. OK

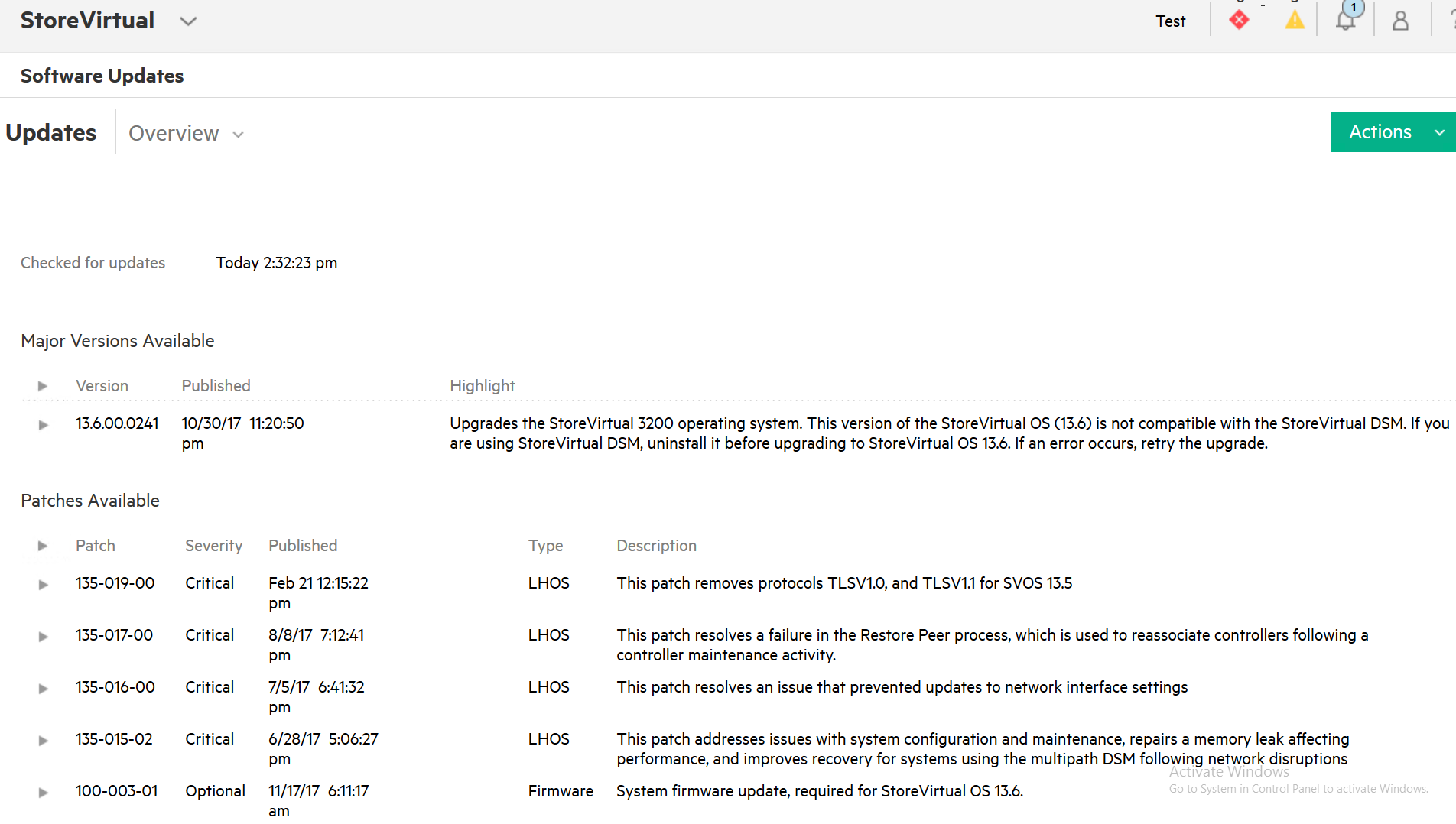

After that go to StoreVirtual | Software Updates



Success, StoreVirtual sees updates from NFS



You can install updates by selecting Install from Actions menu.



After you are done updating, remove NFS permissions from Windows Server 2012 R2 by entering



Revoke-NFSSharePermission -Name updates -ClientName X.X.X.X -ClientType host
